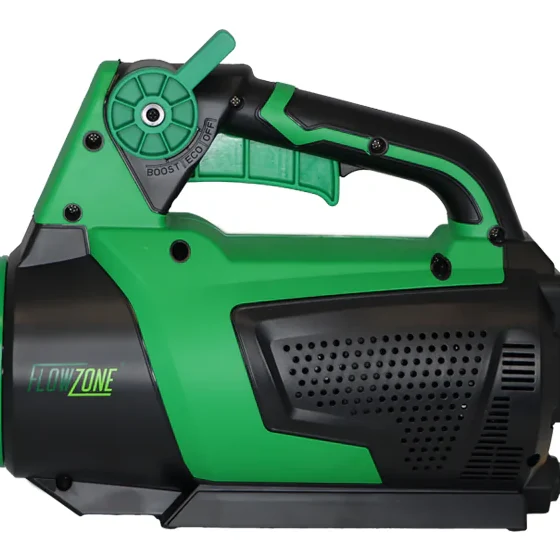

Mode and liquid adjustment
Eco and Boost modes are available with adjustable liquid delivery. Choose and calibrate the setup for the permitted application.
AIR-ASSISTED MISTING
Liquid supply
Air-assisted misting attachment requiring a compatible liquid-supply sprayer
Battery-powered operation18 VPerformance figures use an 18 V / 5.2 Ah battery.
Operating modesEco / BoostWith adjustable liquid delivery.
Nominal airflowApproximately 5.1 m³/minManufacturer nominal figure (180 CFM).
Product photographs do not confirm the supplied local package or included accessories.
Vortex Flex gallery
What Vortex Flex Does
Air-assisted misting attachment requiring a compatible liquid-supply sprayer
Consider this attachment when the application calls for air-assisted misting and the product label permits that method.
How It Works
Pair the attachment with a compatible liquid-supply sprayer and the correct hose connections. Use Eco or Boost and adjust liquid delivery for the application, then calibrate the setup.
Key Advantages
A separate liquid supply
The attachment uses a compatible liquid-supply sprayer; selection includes checking the sprayer, hose connection and fittings.
Nozzle-specific setup
The documented 6504 and 6505 nozzle options have different chart results. Match the setup to the application rather than relying on one droplet number.
Core Specifications
- Equipment type
- Air-assisted misting attachment requiring a compatible liquid-supply sprayer
- Power
- 18 V battery-powered operation
- Performance battery reference
- Performance figures are stated with an 18 V / 5.2 Ah battery
- Modes and liquid delivery
- Eco and Boost modes with adjustable liquid delivery
- Nominal airflow
- Nominal airflow approximately 5.1 m³/min (180 CFM)
- Documented nozzle options
- Documented nozzle options: 6504 and 6505 65° fan tips; confirm supplied package
- Charging reference
- Stated charging time approximately 2 hours with specified battery and charger
- Charger reference
- Specified charger: 21 V / 2.5 A; confirm supplied package
Documented batteries, chargers and nozzle options do not confirm the supplied local package.
Compatible Liquid Supply
Documented pairing

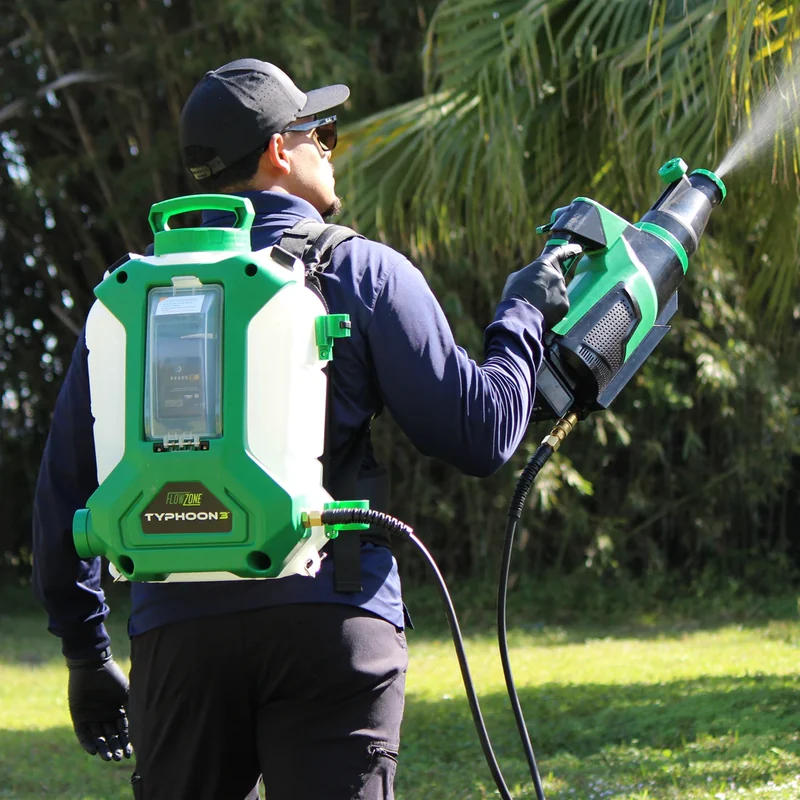

Documented with Cyclone 3 and Typhoon 3; confirm correct hose connection and fittings
Air-assisted misting attachment requiring a compatible liquid-supply sprayer
Local configuration
Droplet & Airflow
Droplet results depend on nozzle and setup and are not a general guarantee. Calibrate for the operating conditions and application.
Documented chart configuration
The manual chart uses sprayer dial 1 and liquid knob 4. The percentage basis is not specified. Keep the nozzle-specific results with this context.
- 6504 nozzle — manual chart
- Manual chart: with 6504 nozzle, 80% below 100 µm under the stated test configuration; calibrate for application
- 6505 nozzle — manual chart
- Manual chart: with 6505 nozzle, 80% below 120 µm under the stated test configuration; calibrate for application
Nominal airflow
Nominal airflow approximately 5.1 m³/min (180 CFM)
Application / Label Compliance
The label must permit the method
Use only where the product label permits the application method; calibrate and follow manual PPE, hearing and drift precautions
Follow the manual’s formulation exclusions, wind and drift precautions, calibration and flushing instructions.
Battery & Runtime
- Performance battery reference
- Performance figures are stated with an 18 V / 5.2 Ah battery
- Eco runtime
- Manufacturer-stated Eco runtime 70+ minutes with a 5.2 Ah battery
- Boost runtime
- Manufacturer-stated Boost runtime approximately 32 minutes with a 5.2 Ah battery
FAQ
Does Vortex Flex need a separate sprayer?
Air-assisted misting attachment requiring a compatible liquid-supply sprayer
Documented with Cyclone 3 and Typhoon 3; confirm correct hose connection and fittings
Can I adjust the operating mode and liquid delivery?
Eco and Boost modes with adjustable liquid delivery
Does it always produce droplets below 100 µm?
No universal droplet-size claim is made. The manual reports nozzle-specific results under a stated setup; calibrate for the application and operating conditions.
See nozzle-specific data and test configurationWhat is the runtime reference?
Manufacturer-stated Eco runtime 70+ minutes with a 5.2 Ah battery
Manufacturer-stated Boost runtime approximately 32 minutes with a 5.2 Ah battery
Can I use it for any misting application?
Use only where the product label permits the application method; calibrate and follow manual PPE, hearing and drift precautions
